ECGSOLAX 6200W 4200W Hybrid Solar Inverter 24V 48V Auto 500VDC Build in 120A MPPT Solar Controller Dual Ouput Hybrid Inverter

ECGSOLAX 6200W 4200W Hybrid Solar Inverter 24V 48V Auto 500VDC Build in 120A MPPT Solar Controller Dual Ouput Hybrid Inverter

Name: ECGSOLAX 6200W 4200W Hybrid Solar Inverter 24V 48V Auto 500VDC Build in 120A MPPT Solar Controller Dual Ouput Hybrid Inverter
Brand: patriotdefencesupply
SKU: 14:350852#4.2KW 24V;175:100016896#with WIFI;186:100016896#220-240V;200007763:201336100
Price: 725.48 USD
Availability: InStock

$725.48

Color

4.2KW 24V

6.2KW 48V

Output Voltage

220-240V

Ships From|Input Voltage

CHINA | with WIFI

CHINA | without WIFI

FREE SHIPPING THROUGHOUT THE CONTINENTAL U.S.

In stock, ready to ship
Backordered, shipping soon

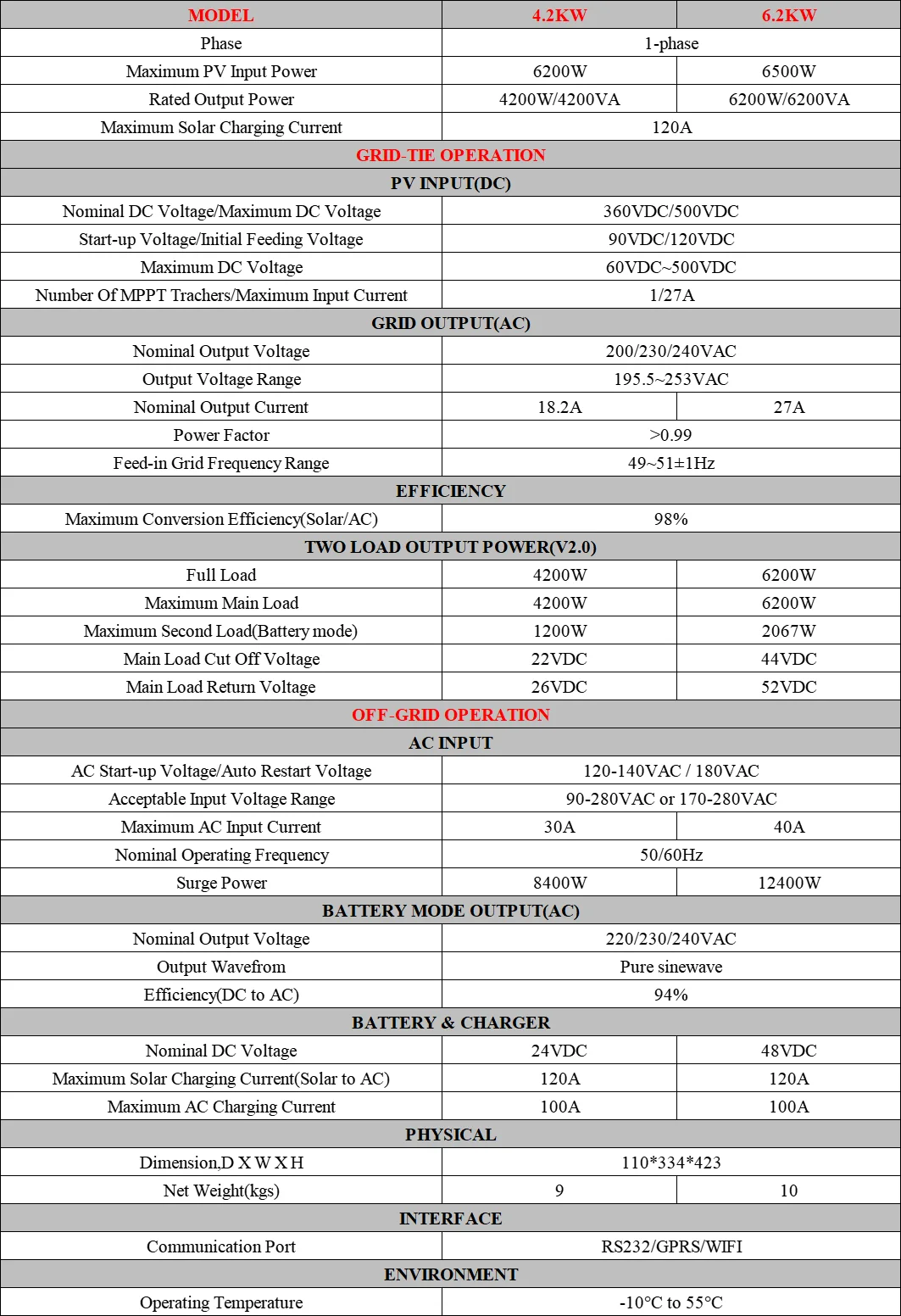

SPECIFICATIONS

Brand Name: ECGSOLAX

Origin: Mainland China

Hign-concerned Chemical: None

Certification: CE

Size: 110*334*423mm

Output Frequency: 50Hz

Output Type: SINGLE

Output Current: 120A

Output Power: 1 - 200KW

Weight: 10kg

Model Number: MPPT Solar Inverter

Solar inverter Type: Hybrid Solar inverter

Battery voltage: 6.2KW 48V / 4.2KW 24V

Output Voltage: 220VAC-240VAC

Output Waveform: Pure sine Wave

Communication Interface: RS232/WIFI/GPRS

Nominal operating frequency: 50/60HZ

Feature 1: 6200W Hybrid Solar Inverter

Feature 2: 4200W Hybrid Solar Inverter

Feature 3: Hybrid Solar Inverter 24V

Feature 4: Hybrid Solar Inverter 48V

Introduction:

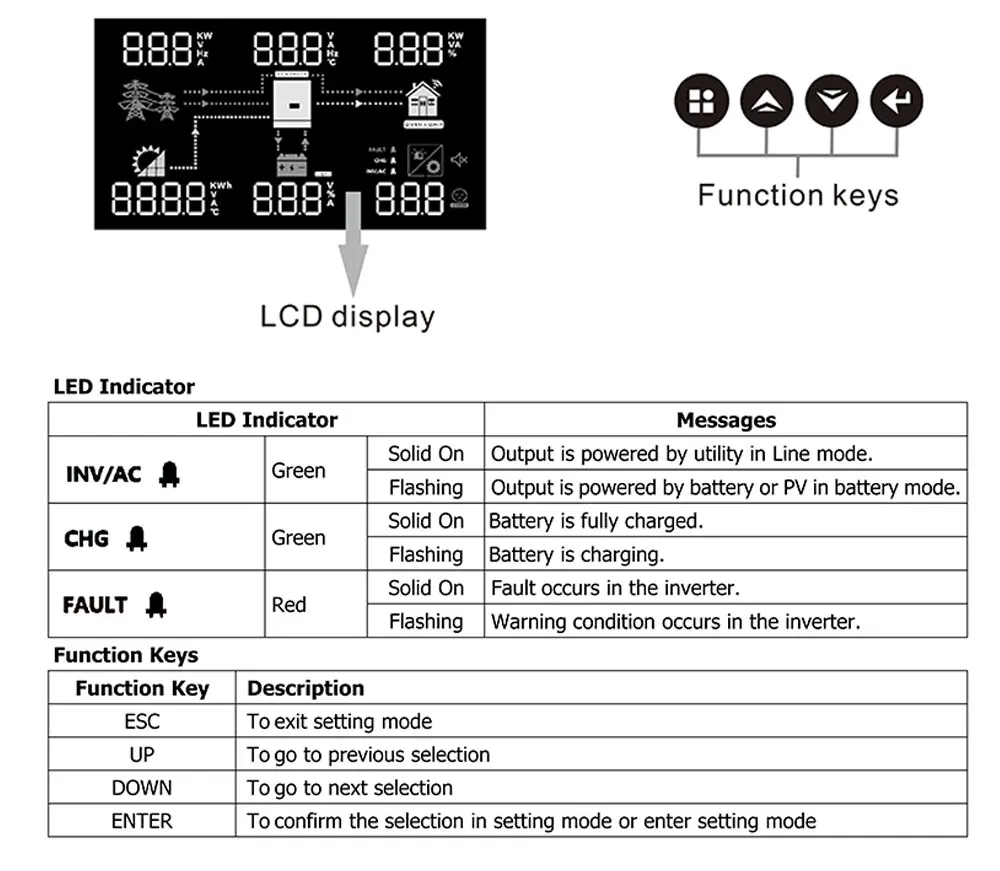

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time and output pure sine wave to convert DC into AC.

Features:

1.Pure sine wave solar inverter

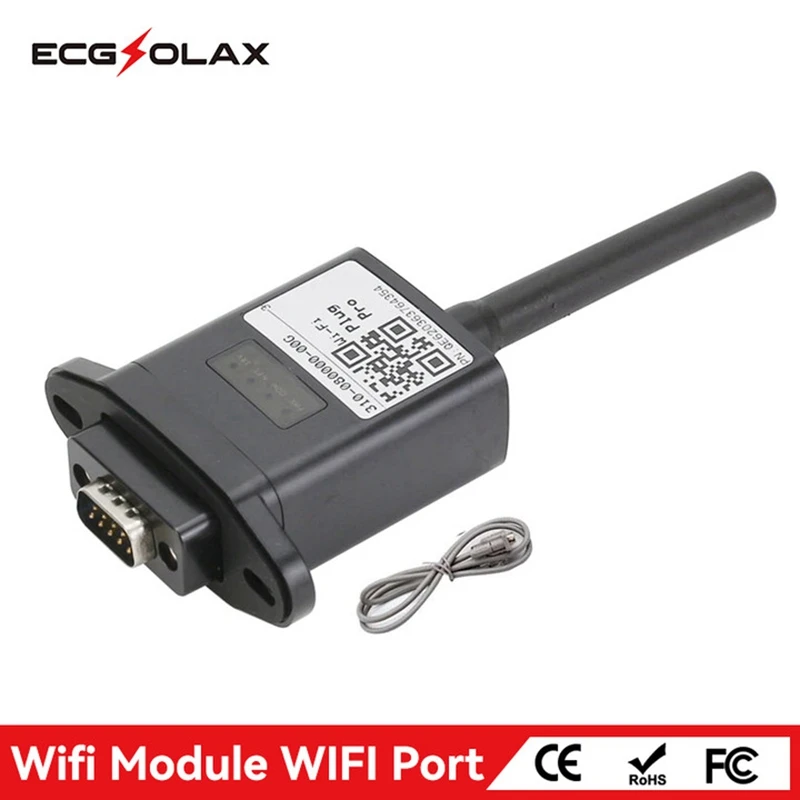

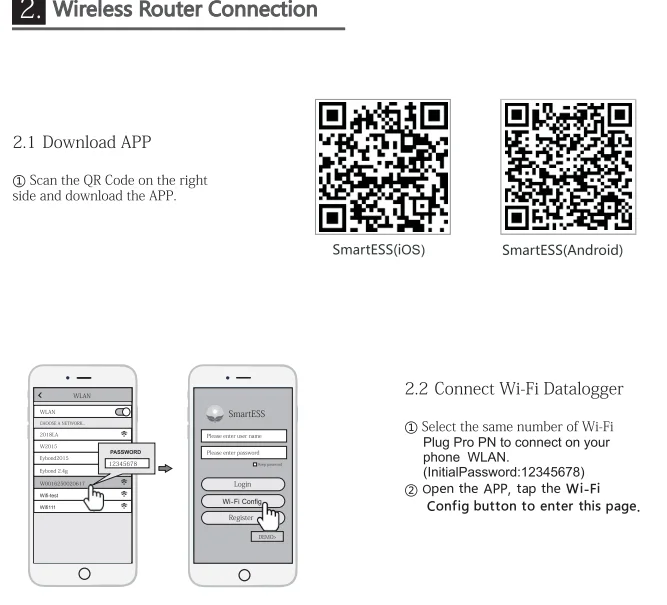

2.WIFI&GPRS available for IOS and Android

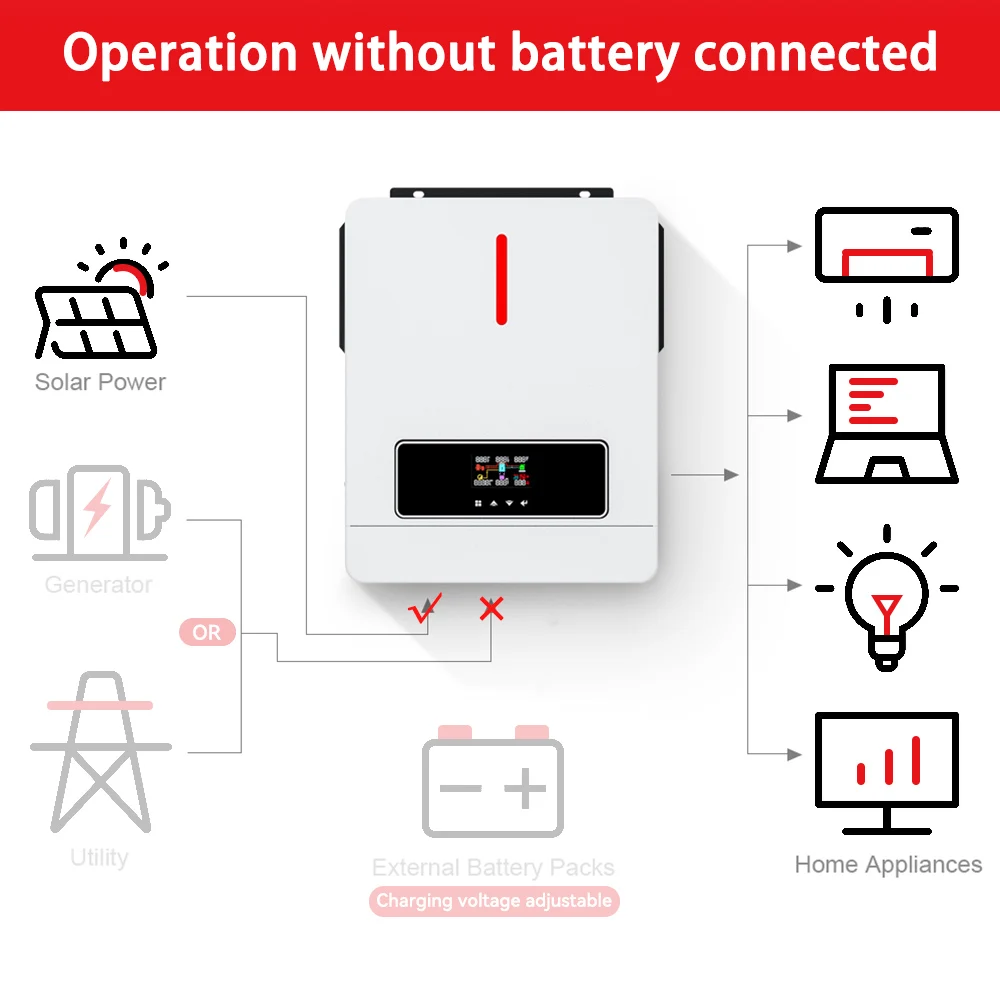

3.Inverter running without battery

4.One-key restoration to factory settings

5.Built-in lithium battery automatic activation

6.Built-in lithium battery automatic activation

7.MPPT:max 6200W(for 4.2KW),max 6500W(for 6.2KW)

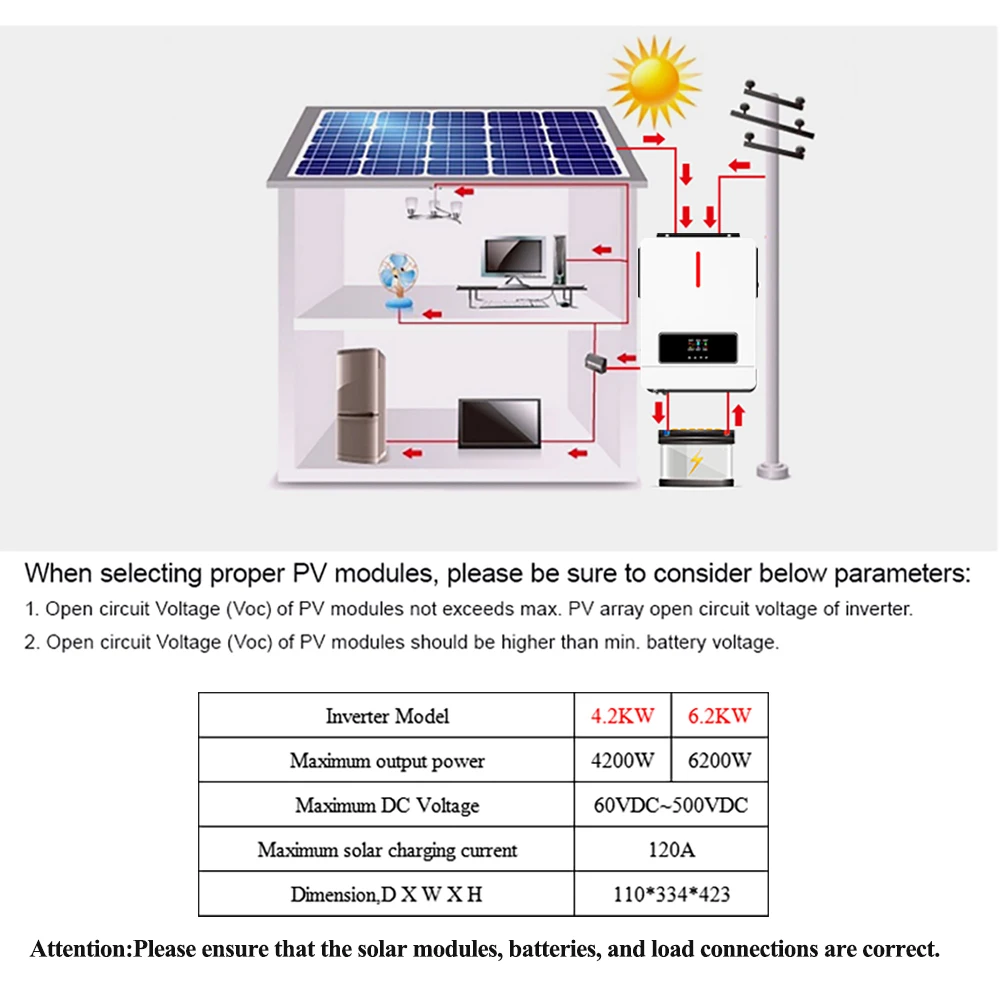

8.High PV input voltage range(90~450VDC)

9.Built-in anti-dusk kit for harsh enviroment

10.Smart battery charge design to optimize battery life

11.Dual output

DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER
