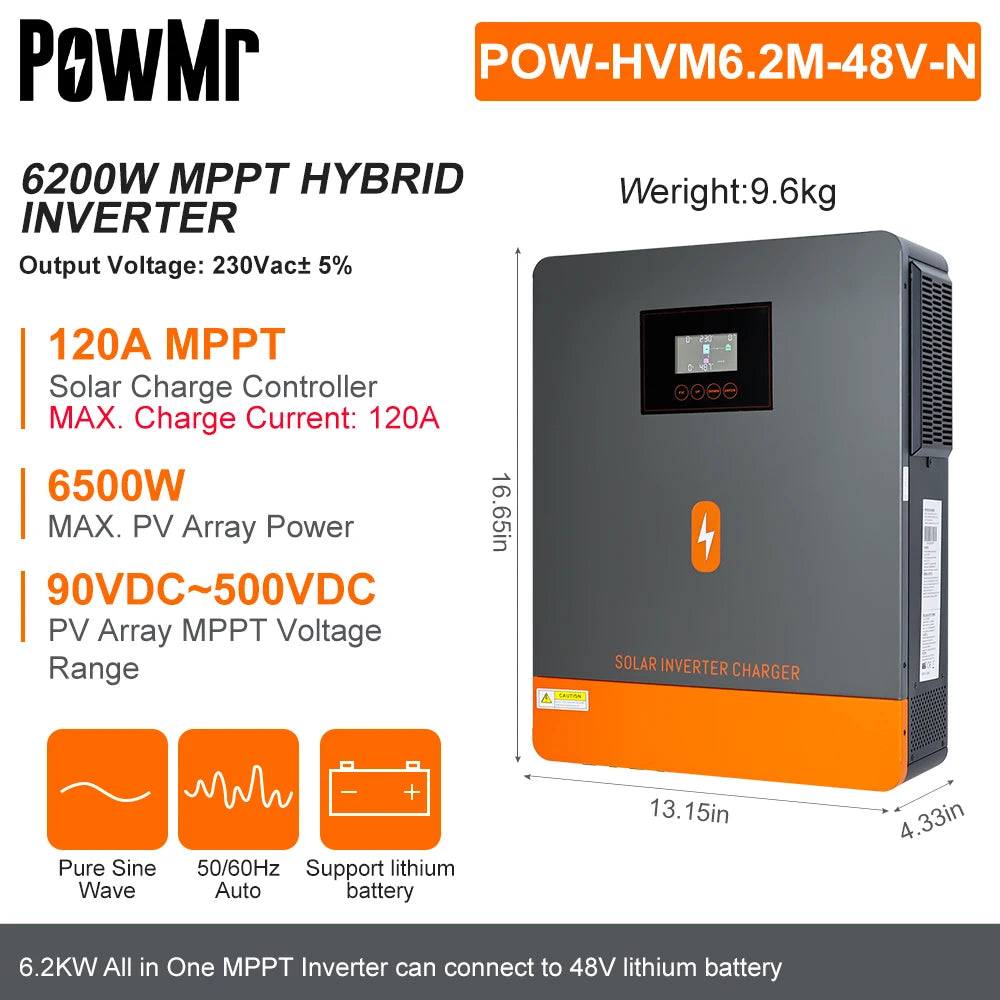

PowMr 6.2KW 4.2KW Hybrid Solar Inverter 48V 24V to 220V Dual AC Pure Sine Wave MPPT 120A Solar Charge Controller PV 60~500V WIFI
- FREE SHIPPING THROUGHOUT THE CONTINENTAL U.S.
- In stock, ready to ship
SPECIFICATIONS
Brand Name: PowMr
Origin: Mainland China
Hign-concerned Chemical: None
Certification: CE
Size: 437x390x130 mm
Output Frequency: 50HZ/60HZ
Output Type: SINGLE
is_customized: Yes
Output Current: MPPT 120A
Output Power: 1 - 200KW
Weight: 10KG
Is Smart Device: YES
Model Number: POW-HVM6.2M-48V-N
Product: hybrid solar inverter
Description: photovoltaic hybrid inverter
Charging: pure sine wave inverter
Work for: solar panel/photovoltaic panel,Factory equipment, commercial load, industrial machinery
Part of: solar system complete
Output voltage range: 220VAC-240VAC
Battery voltage: 48V
Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Used for: Household appliances, farm tools, farm tools
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)
PowMr 6.2KW 4.2KW MPPT Solar Inverter With 120A Solar Charge Controller All in One 230V Dual AC Output PV 60~500VDC Support WIFI
Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
10.For grid connection or off grid use
11.Dual AC Output
Specification:
Table 1 Line Mode Specifications | ||
INVERTER MODEL |
4.2KW 24 |
6.2KW 48V |
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
|
Table 2 Inverter Mode Specifications | ||
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
Rated Output Power |
4.2KW |
6.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50HZ/60HZ |
|
Peak Efficiency |
93% |
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
No Load Power Consumption |
30W |
50W |
Table 3 Charge Mode Specifications | ||
Utility Charging Mode | ||
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
100A |
100A |
MPPT Solar Charging Mode | ||
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
Max. PV Array Power |
6200W |
6500W |
Nominal PV Voltage |
240Vdc |
360Vdc |
PV Array MPPT Voltage Range |
60Vdc~450Vdc |
90Vdc~500Vdc |
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current(AC charger plus solar charger) |
120A |
120A |
Tabel 4 Grid-Tie Operation | ||
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195-253VAC |
|
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
|
Nominal Output Current |
18.2A |
26.9A |
Maximum Conversion Efficiency(DC/AC) |
97% |
|
Table 5 Two Load Output Power | ||
INVERTER MODEL |
4.2M 24V |
6.2KW 48V |
Full Load |
4200W |
6200W |
Maximum Main Load |
4200W |
6200W |
Maximum Second Load(battery model) |
1400W |
2066W |
Main Load Cut Off Voltage |
26VDC |
52VDC |
Main Load Return Voltage |
27VDC |
54VDC |
