Frequency Inverter 15KW VFD 20HP 3Ph Speed control Output 380V 32A 500Hz Motor Drive VFD for Lathe 3 Phase Asynchronous Motor
- FREE SHIPPING THROUGHOUT THE CONTINENTAL U.S.
- In stock, ready to ship
SPECIFICATIONS
Brand Name: NFLIXIN
Type: DC/AC Inverters
Origin: Mainland China

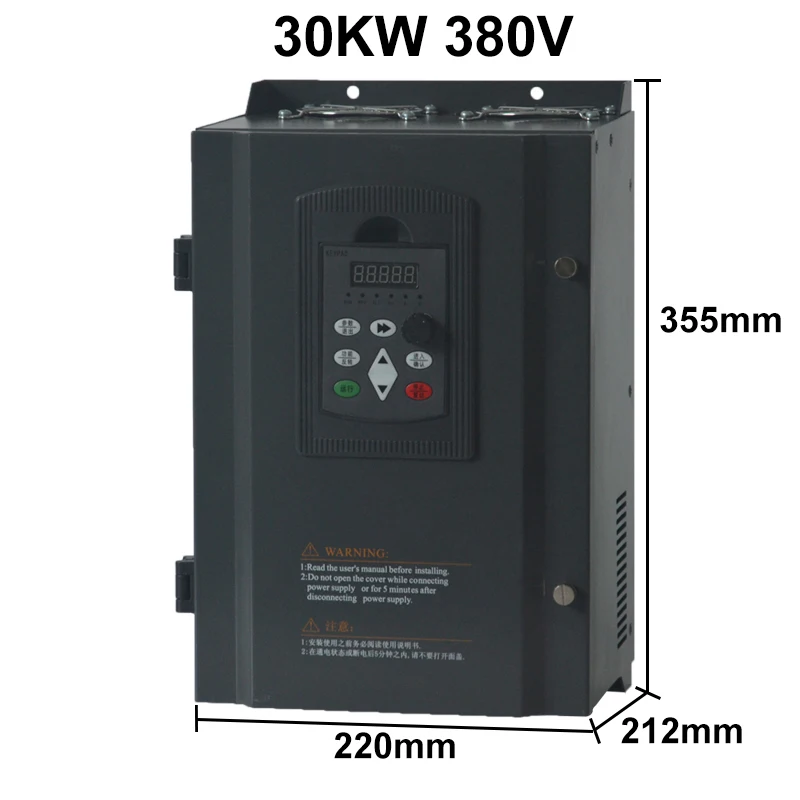

Size: 150mm*220mm*172mm
Output Frequency: 0-400HZ
Output Type: triple
is_customized: Yes
Output Current: 32A
Output Power: 1 - 200KW
Weight: 3kg
Model Number: 15KW
Certification: CE
Input Voltage: 3P 380V
output Voltage: 3 phase 380V
Applications: Universal
Level of portection: Ip20
Control method: V/F
Power: 15KW
18.5KW-22KW 15KW

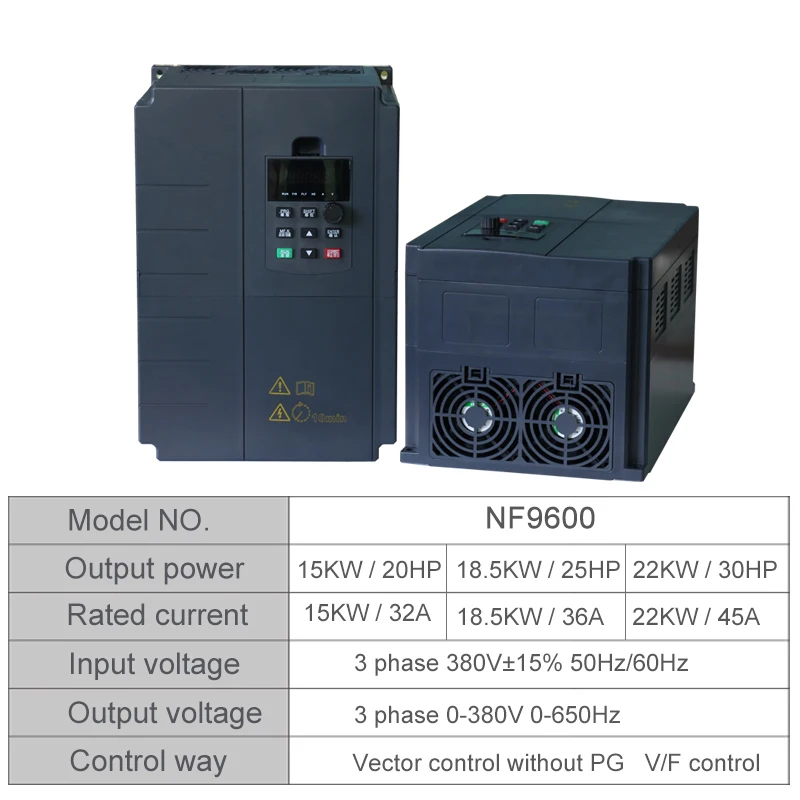

1.Output Power:15kw/18.5kw/22kw/30kw
2.Rated current:32A/38A/45A/60A
2.Rated Frequency :50hz/60hz
3.Output Frequency Range:0~650Hz
4.Input Voltage Range:3 phase 380V±15%
5.Output Voltage Range:3 phase 380V
6.Control way: Open loop vector control(SVC) V/F control
7.Starting Torque: G type machine:0.5Hz/150%( SVC)
8.Main function: Control and adjust the speed of the ac motor
We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
