PowMr 10.2KW 48V MPPT Solar Inverter Pure Sine Wave Hybrid 160A 230VAC Output PV 90V~500V Input With Dual AC&Dual PV Interface
- FREE SHIPPING THROUGHOUT THE CONTINENTAL U.S.
- Low stock - 8 items left
SPECIFICATIONS
Brand Name: PowMr
Origin: Mainland China
Certification: CE
Size: 437x390x130 mm
Output Frequency: 50HZ/60HZ
Output Type: SINGLE
is_customized: Yes
Output Current: MPPT 160A
Output Power: 1 - 200KW
Weight: 16KG
Is Smart Device: YES
Model Number: POW-HVM10.2M
Product: hybrid solar inverter
Description: photovoltaic hybrid inverter
Charging: pure sine wave inverter
Work for: solar panel/photovoltaic panel,Factory equipment, commercial load, industrial machinery
Part of: solar system complete
Rated output power: 10200W
Output voltage range: 220VAC-240VAC
Working efficiency: >95%
PV operating voltage: 90Vdc-500Vdc
Battery voltage: 48V
Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Used for: Household appliances, farm tools, farm tools
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)
PowMr 10.2KW 48V MPPT Solar Inverter Pure Sine Wave Hybrid 160A 230VAC Output PV 90V~500V Input With Dual AC&Dual PV Interface
Introduction:
This is a multi-function grid tied inverter/charger, combining functions of inverter, solar charger and battery charger tooffer uninterruptible power support with portable size. lts comprehensive LCD display offers user-configurableand easy-accessible button operation such as battery charging current，AC/solar charger priority , and acceptable input voltage based on different applications.
Feature:
1.Pure sine wave solar inverter（on/off Grid）
2.Inverter running without battery
3.Output power factor 1.0
4.High PV input voltage range(90~500VDC)
5.WIFI&GPRS available for IOS and Android
6.Built-in anti-dusk kit for harsh environment
7.Built-in 160A MPPT solar charge
8.Smart battery charge design to optimize battery life
9.One-click restoration to factory Settings
10.Dual output
11.Built-in Lithium battery automatic activation
12.Touch buttom
Specification:
Table 1 Line Mode Specifications | ||
INVERTER MODEL |
POW-HVM8.2M |
POW-HVM10.2M |
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
|
Table 2 Inverter Mode Specifications | ||
INVERTER MODEL |
POW-HVM8.2M |
POW-HVM10.2M |
Rated Output Power |
8.2KW |
10.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50HZ |
|
Peak Efficiency |
0.93 |
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
48Vdc |
48Vdc |
Cold Start Voltage |
46.0Vdc |
46.0Vdc |
No Load Power Consumption |
70W |
75W |
Table 3 Charge Mode Specifications | ||
INVERTER MODEL |
POW-HVM8.2M |
POW-HVM10.2M |
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
140A |
140A |
Max. PV Array Power |
8200W |
10200W |
Nominal PV Voltage |
360Vdc |
360Vdc |
PV Array MPPT Voltage Range |
90Vdc~500Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current(AC charger plus solar charger) |
160A |
160A |
Tabel 4 Grid-Tie Operation | ||
INVERTER MODEL |
POW-HVM8.2M |
POW-HVM10.2M |
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195-253VAC |
|
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
|
Nominal Output Current |
35.6A |
44.3A |
Maximum Conversion Efficiency(DC/AC) |
98% |
|
Table 5 Two Load Output Power | ||
INVERTER MODEL |
POW-HVM8.2M |
POW-HVM10.2M |
Full Load |
8200W |
10200W |
Maximum Main Load |
8200W |
10200W |
Maximum Second Load(battery model) |
2733W |
3400W |
Main Load Cut Off Voltage |
44VDC |
44VDC |
Main Load Return Voltage |
54VDC |
54VDC |

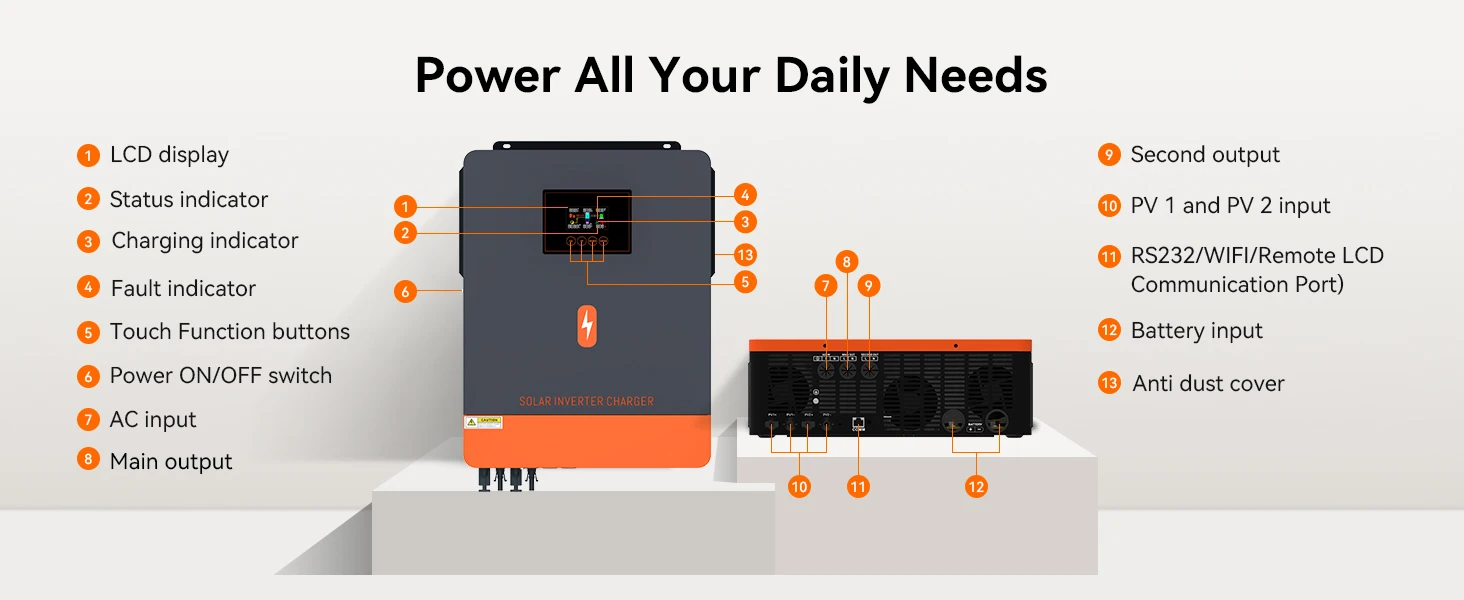

Product Overview:
