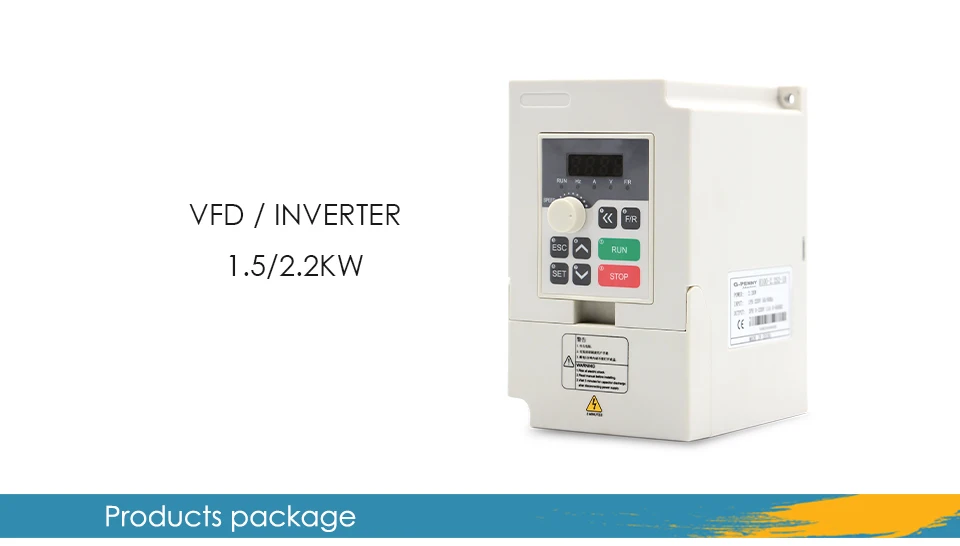

G-Penny Machine110v / 220v 1.5kw VFD Variable Frequency Drive 2.2kw Inverter Motor Speed Control 0-1000Hz Frequency
Regular price$127.78
- FREE SHIPPING THROUGHOUT THE CONTINENTAL U.S.
- Low stock - 9 items left
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Type: AC/AC Inverter
Origin: Mainland China

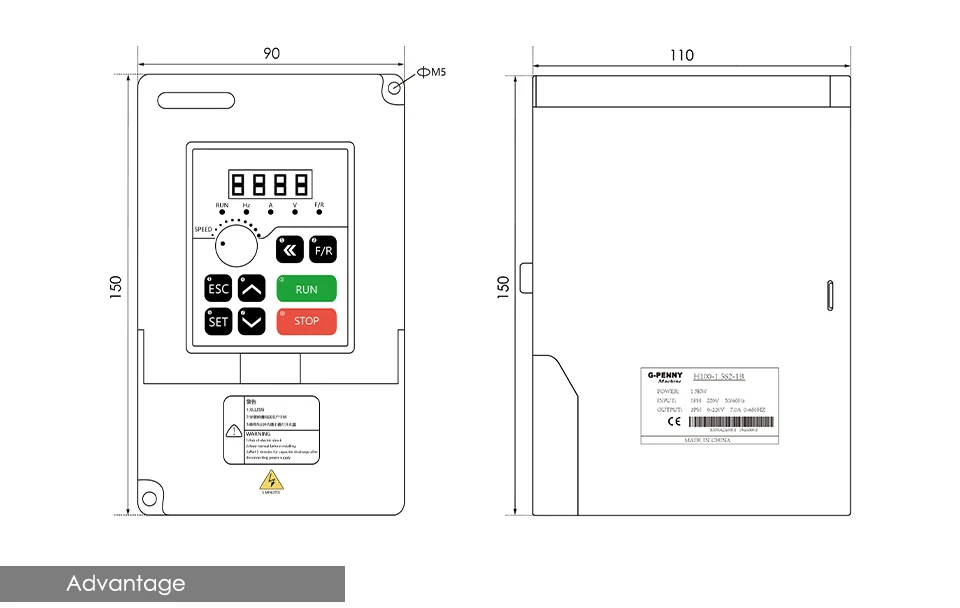

Size: 18cmx16cmx16cm
Output Frequency: 0.10~1000Hz
Output Type: triple
is_customized: Yes
Output Current: 7A/11A
Output Power: 0.001kw-2.2kw
Weight: 1.2KG
Model Number: 220V 2.2KW
Certification: none
Name: VFD /Inverter
Input phase: 1HP
Output phase: 3HP
Power: 1.5kw/2.2kw
Input Voltage: 220V+/-15%
Output Voltage: 0~220vAC
1 pcs x G-Penny Machine 1.5kw/2.2kw 110v/220v Variable Frequency Drive VFD Vector Inverter
(H100 inverter is not a boost inverter)
Power: 1.5KW
Input Voltage: 110v/220v
Curent: 14A(110V) / 7A(220V)
Output Voltage: 0~110v/220v
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Input Phase: 1 phase
Output Phase: 3 phase
Warranty: 1 year from the date you purchased
Power: 2.2KW
Input Voltage: 110v/220v
Curent: 12.5A(110V) / 11A(220V)
Output Voltage: 0~110v/220v
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Input Phase: 1 phase
Output Phase: 3 phase
Warranty: 1 year from the date you purchased
1. The outer plastic shell of the inverter is made of ABS flame retardant raw material, which is flame retardant and not easy to break.
2. The inverter cooling fan is a domestic first-line brand Huaxia Hengtai, the air volume is more than 20% higher than that of ordinary fans, and the service life is more than 5 years.
3. There is an independent cooling air duct inside the inverter, which can form an independent space and effectively prevent dust, water mist, etc. from entering the circuit board.
4. With MODBUS485 communication function, built-in braking unit.
5. Built-in PID setting, speed tracking, multi-function relay output, multiple fault protection, multiple state feedback torque control, analog setting.
6. The capacitor brand used in the inverter is Taiwan loose control, the temperature resistance is 105 degrees, and the temperature resistance of ordinary capacitors is 80 degrees.
7. The maximum output frequency of the inverter can reach 1000HZ,
8. Currently has CE certificate, CSA certification program has passed, in certification.
9. Heavy load and high torque, 1HZ can reach full torque.
10. Up to 16-stage speed control can be achieved.
Some questions about inverter
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
